Fanatec Podium Steering Wheel Porsche 911 GT3 R
How to build the Fanatec Podium Steering Wheel Porsche 911 GT3 R.
When you purchase the entire Fanatec Podium Steering Wheel Porsche 911 GT3 R you are ordering:-
1x Podium Advanced Paddle Module
1x Podium Button Module Endurance
1x Podium Wheel Rim Porsche 911 GT3 Cup Suede
1x Podium Hub

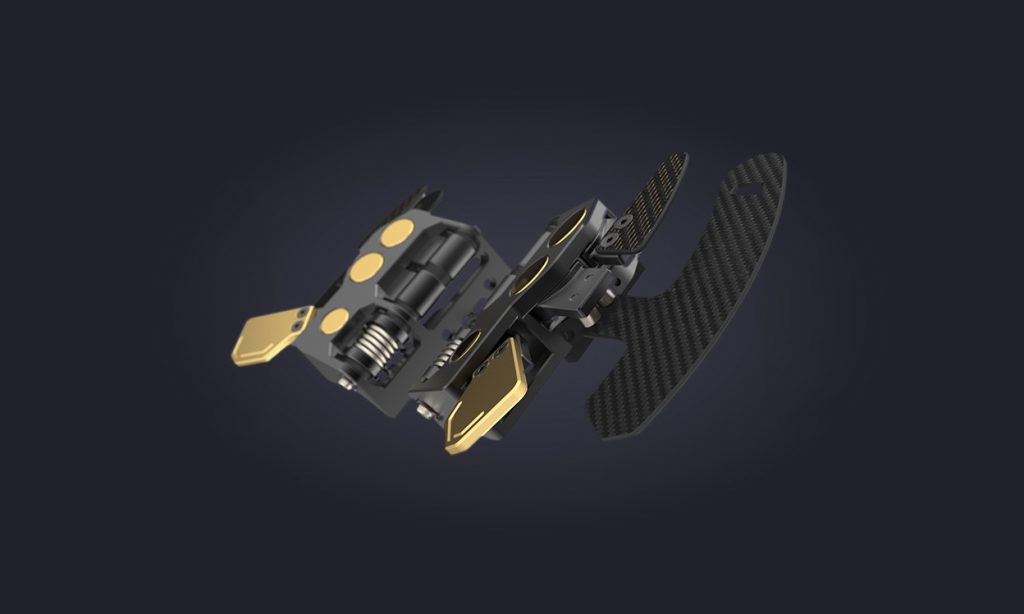

Podium Advanced Paddle Module

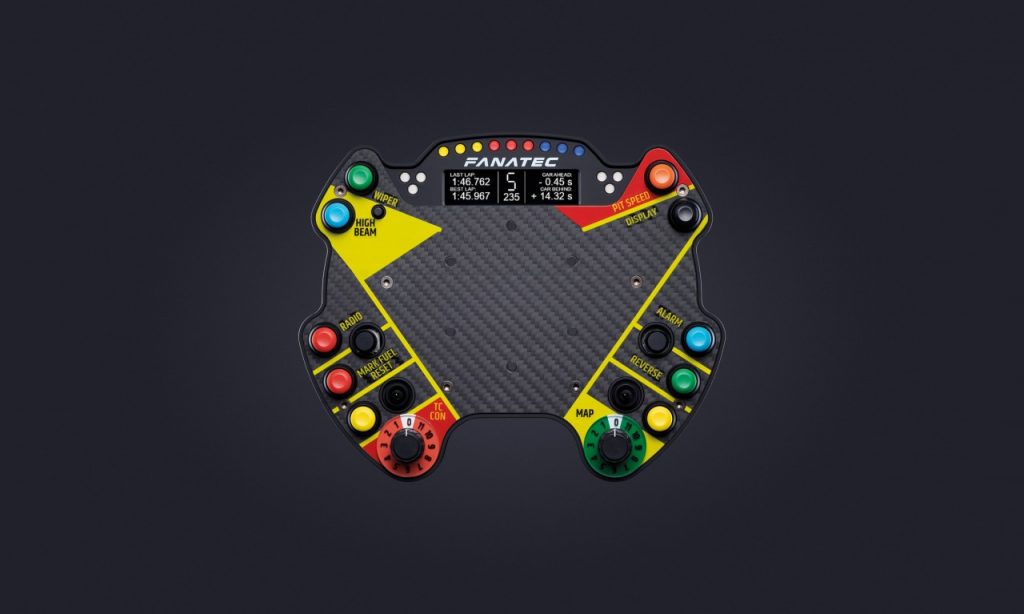

Podium Button Module Endurance

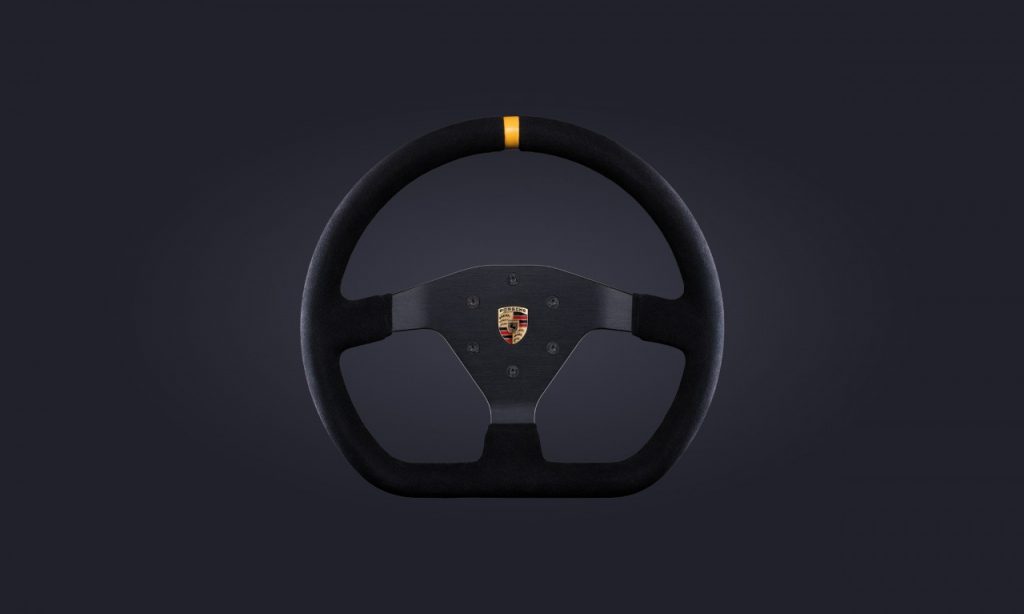

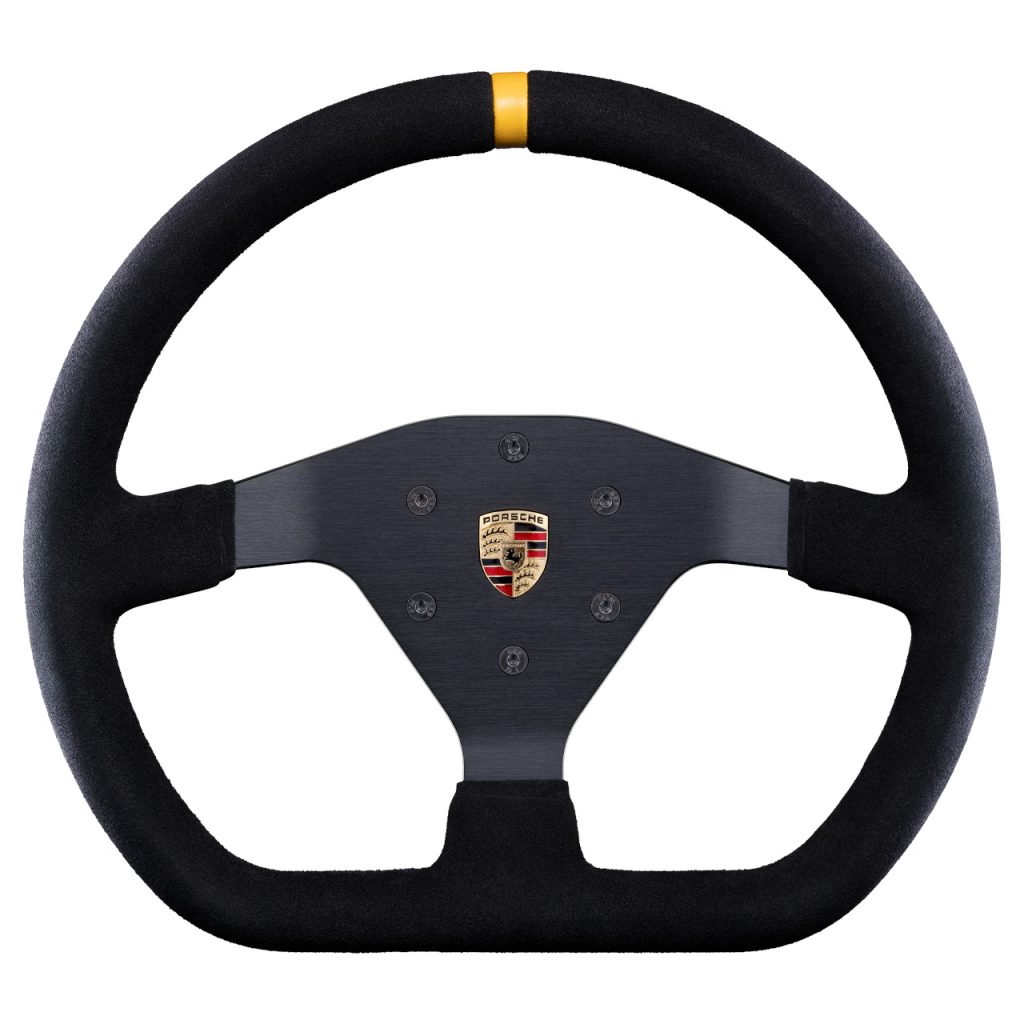

Podium Steering Wheel Porsche 911 GT3 R Cup Suede

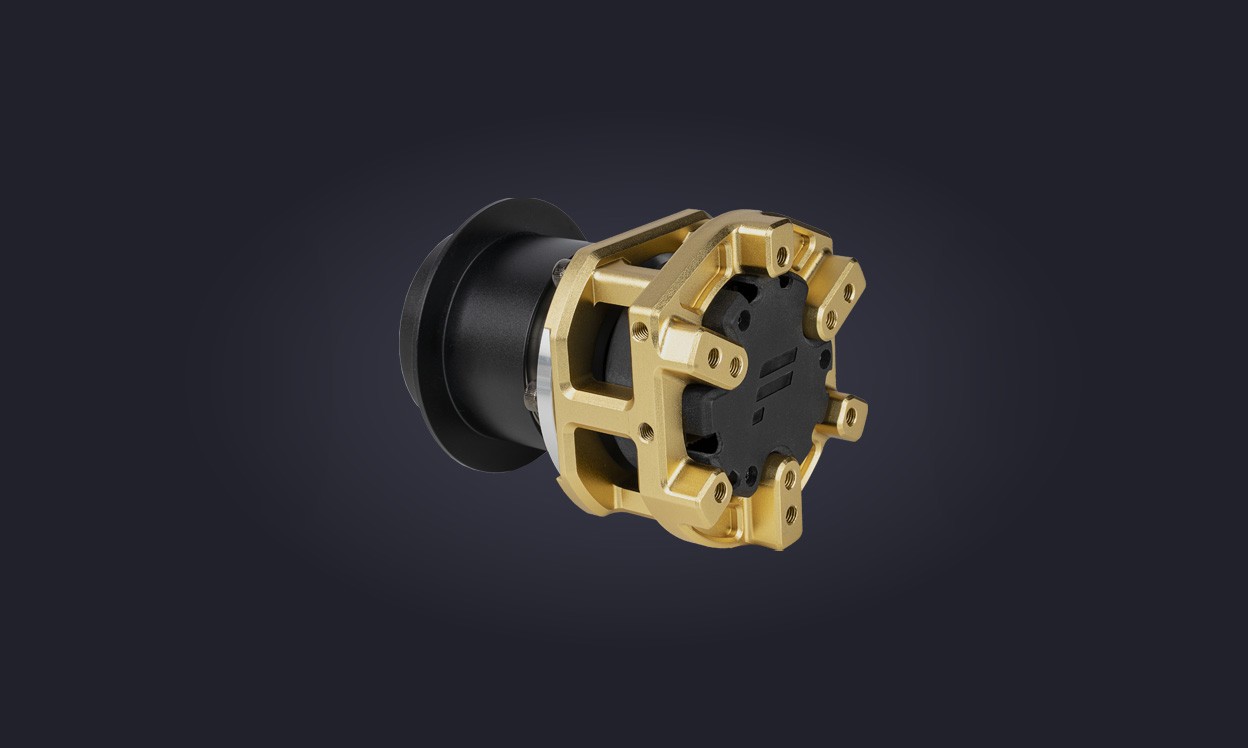

Podium Hub
You still need the QR1 Wheel-Side Quick Release Adapater which was formerly known as the ClubSport Quick Release Adapter. When you add the entire setup to your basket Fanatec will add this unit FREE OF CHARGE saving over €99.95.

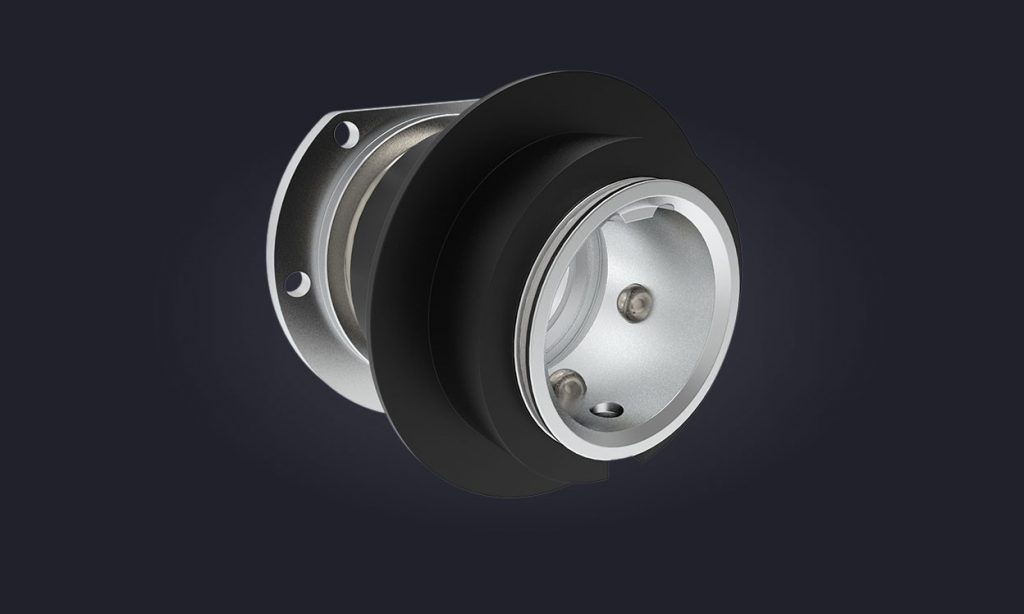

QR1 Wheel Side Club Sport Quick Release Adapter
How to build the Fanatec Podium Steering Wheel Porsche 911 GT3 R.

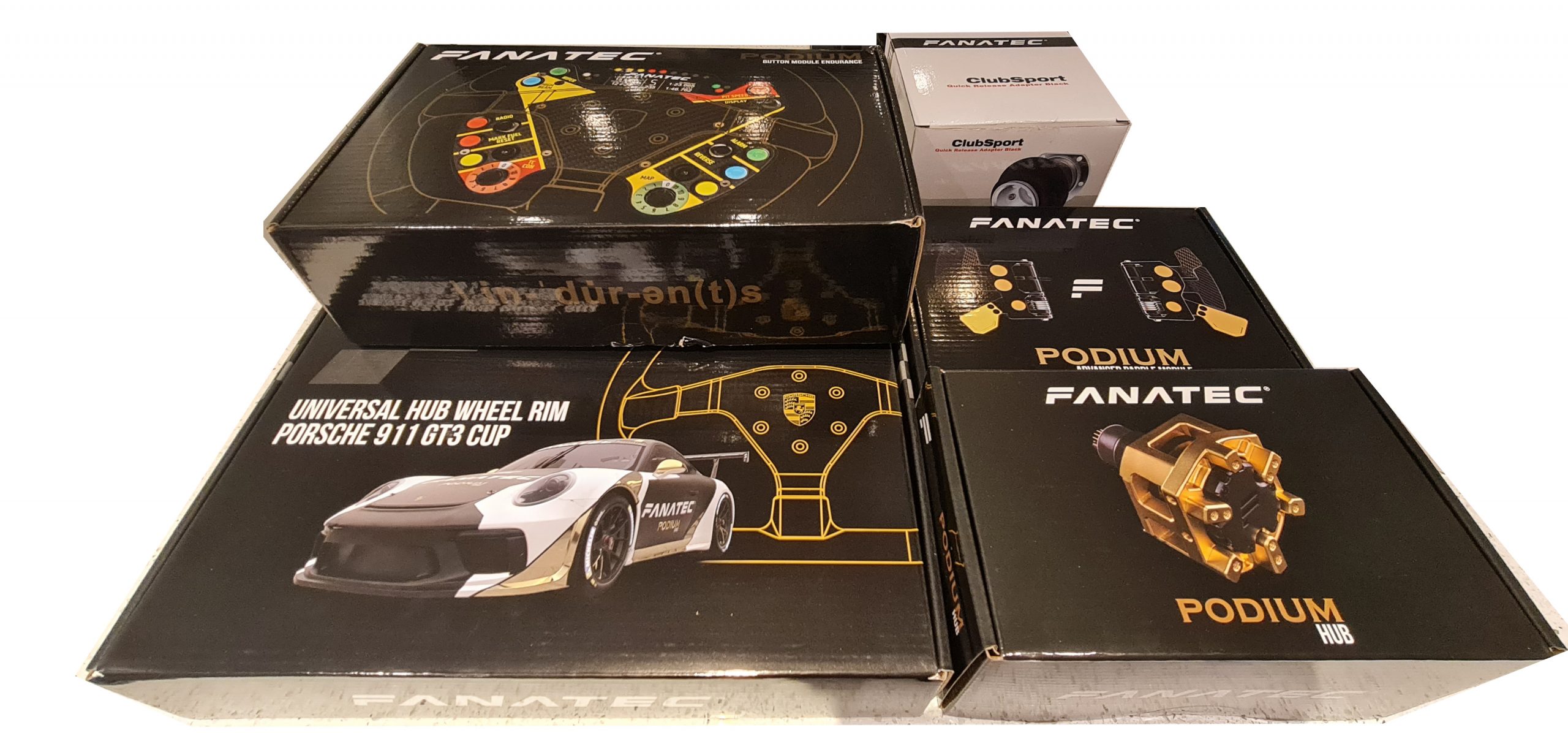

Once you have all the boxes and you are ready to build we recommend not opening them up all at once to prevent missing up screw bags etc.
We recommend starting with the Podium Advanced Paddle Module first.
Unboxing & Setup Tutorial | Podium Advanced Paddle Module
We recommend watching this video first before doing anything else!

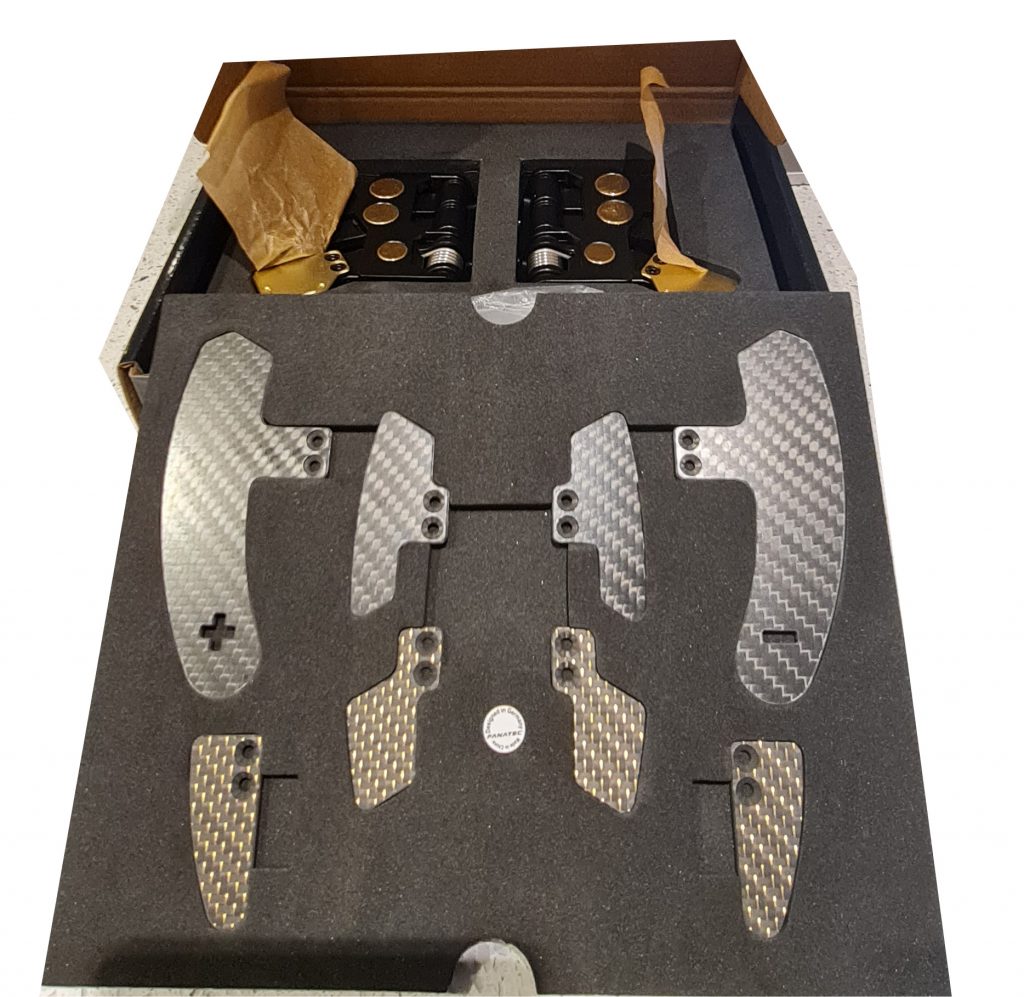

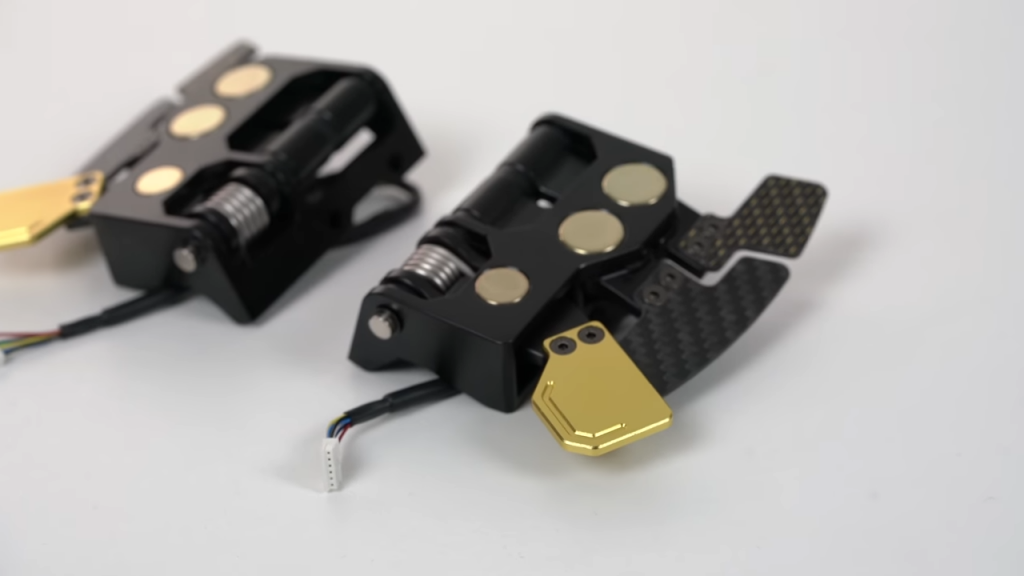

Now open the BOX and lets take a look at the amazing high quality Podium Advanced Paddle Module.

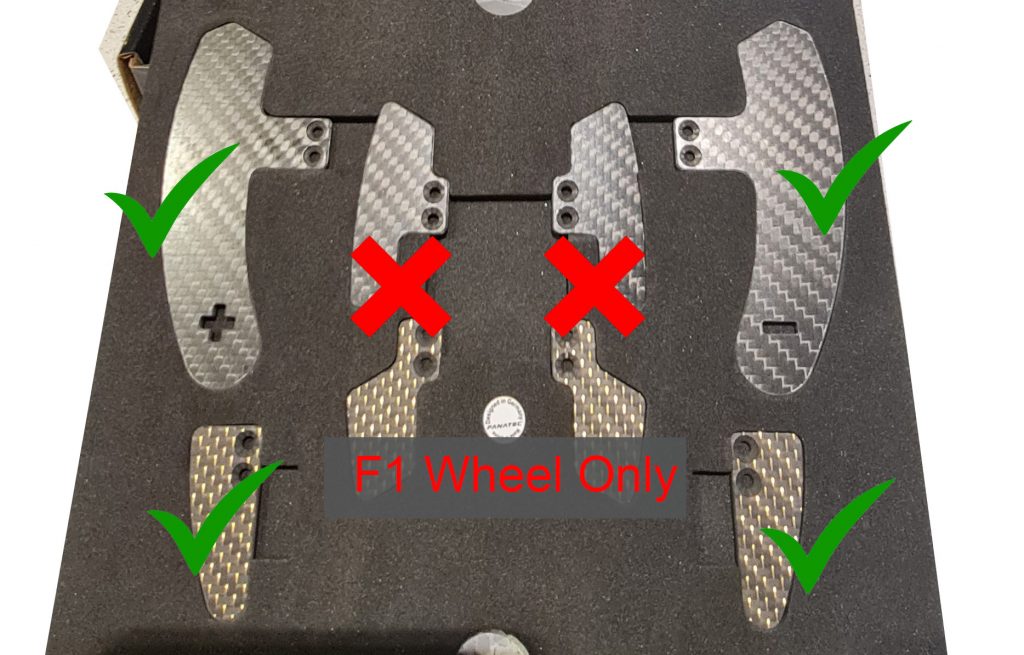

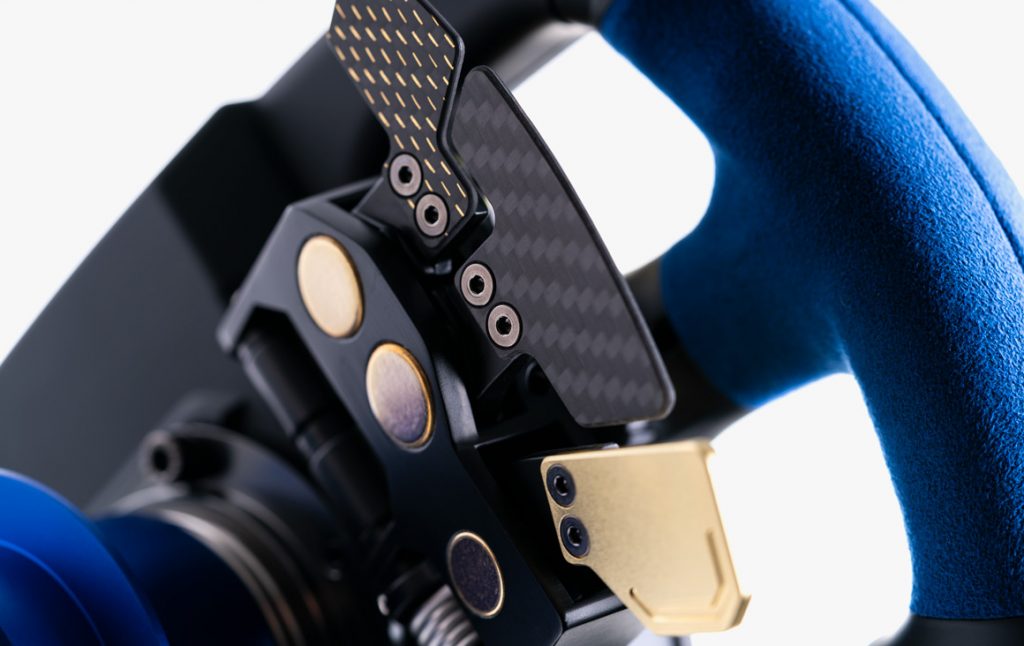

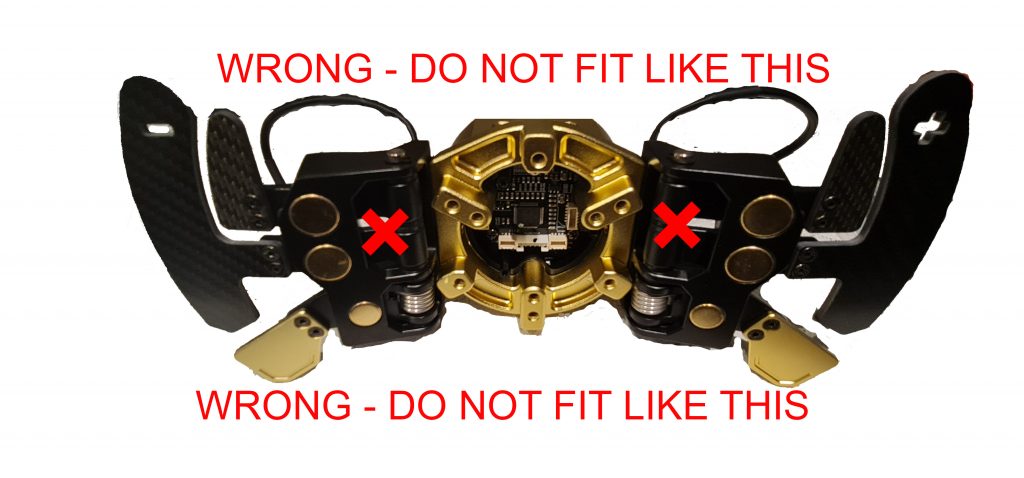

Now take note here as this is important. The photos and the VIDEO show the paddle units fitted as you can see here.
If you look at the attachment screws you can see how they are all fitted on the same level.

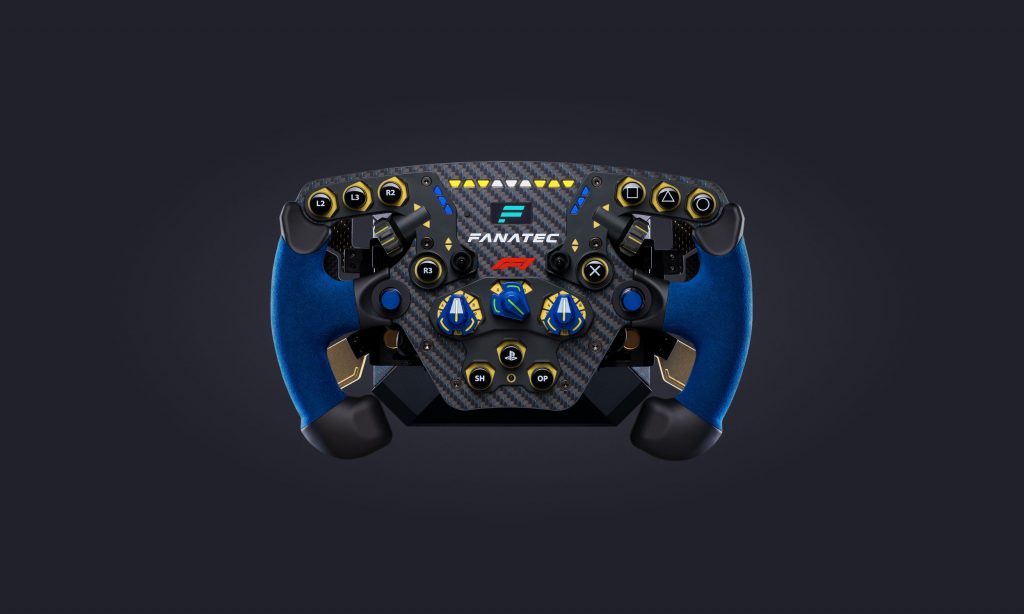

This is perfect if you have an F1 style wheel but we are building the Porsche Steering Wheel.

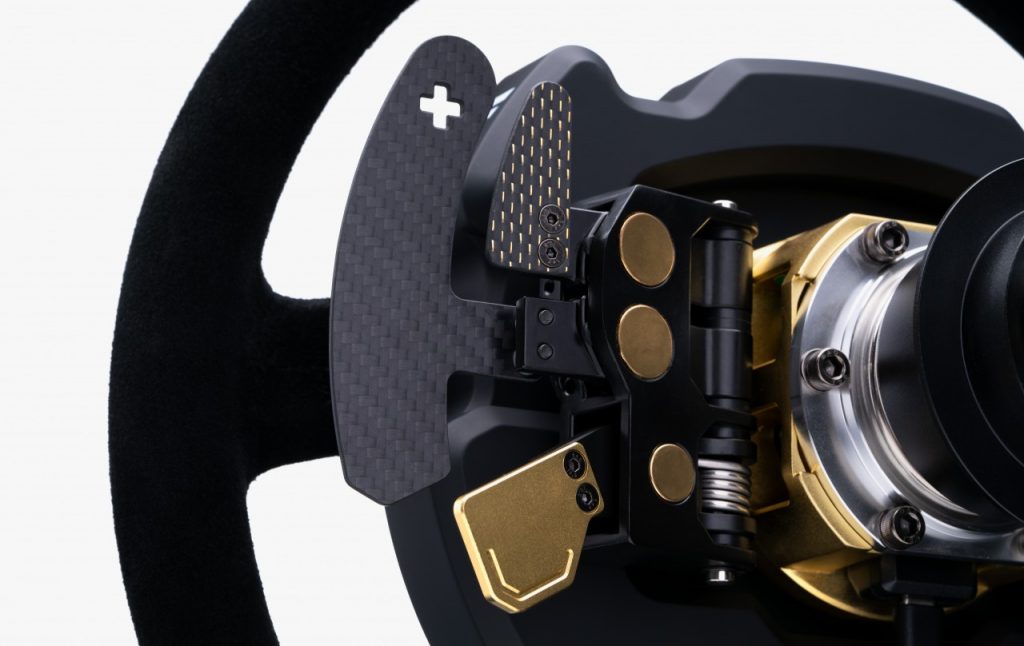

The Podium Steering Wheel Porsche 911 GT3 R Paddles are fitted off-set and attachement screws are installed 180 degrees differently to the F1 wheel setup

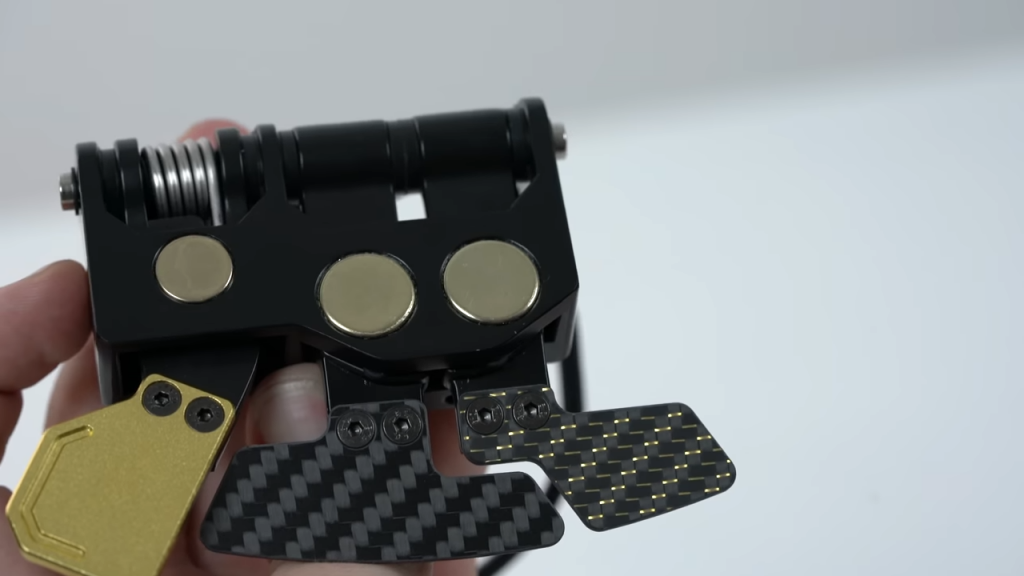

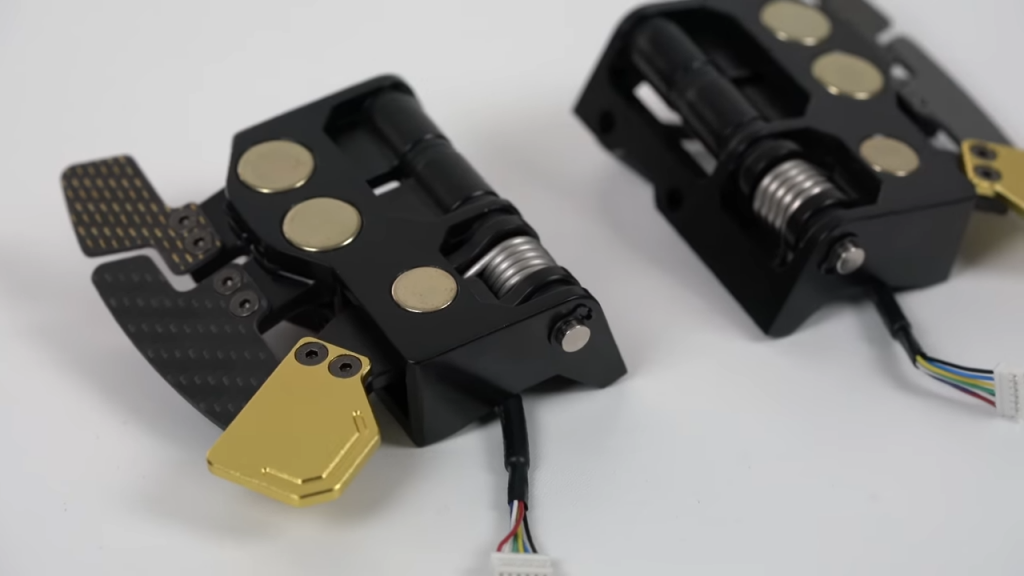

If you look at the gold coloured circles as a reference and install the PLUS paddle as seen in the photo then the MINUS paddle shifter will be simple and you can guarantee you have this built correctly.
Note that the attachement screws for the large paddle are installed 180 degrees differently to the small paddle which matches the factory installed golden coloured paddle.

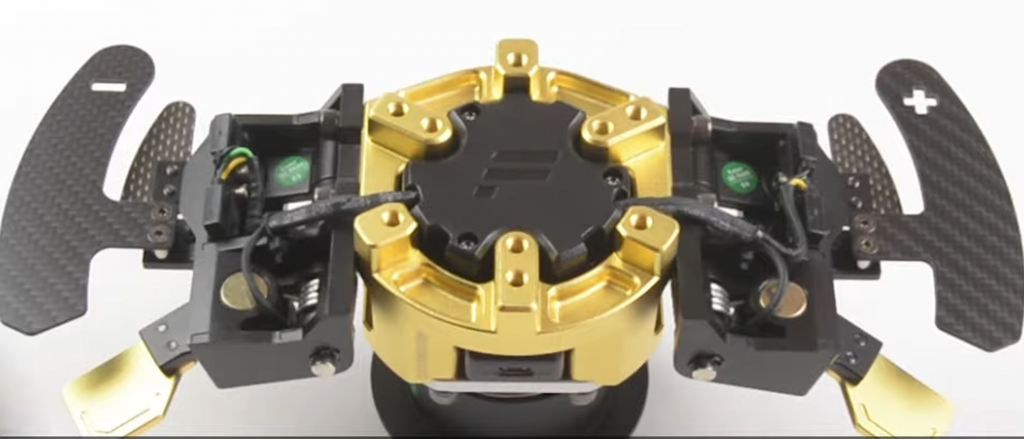

Mounting Paddles To The Podium Hub

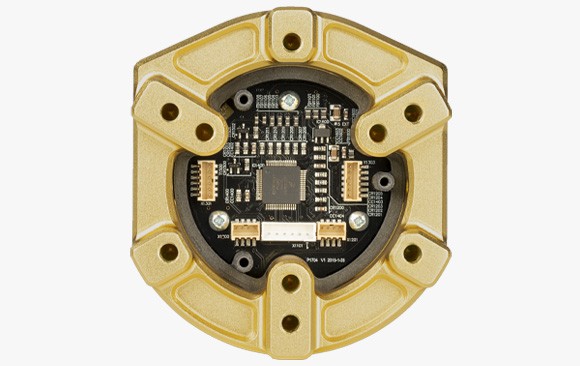

First thing we need to do is to remove the BLACK (GOLD highlighted in the instruction image) cover from them Podium Hub.

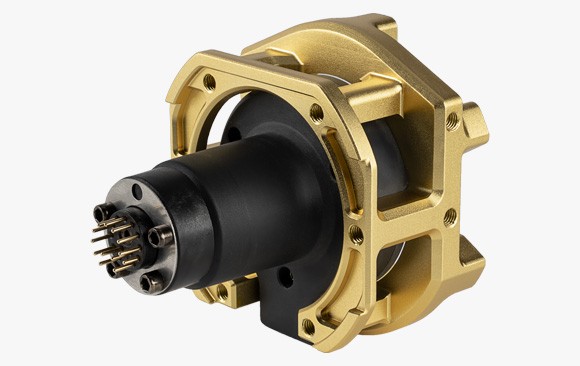

This will expose the circuit board connections required to link the paddles to the unit.

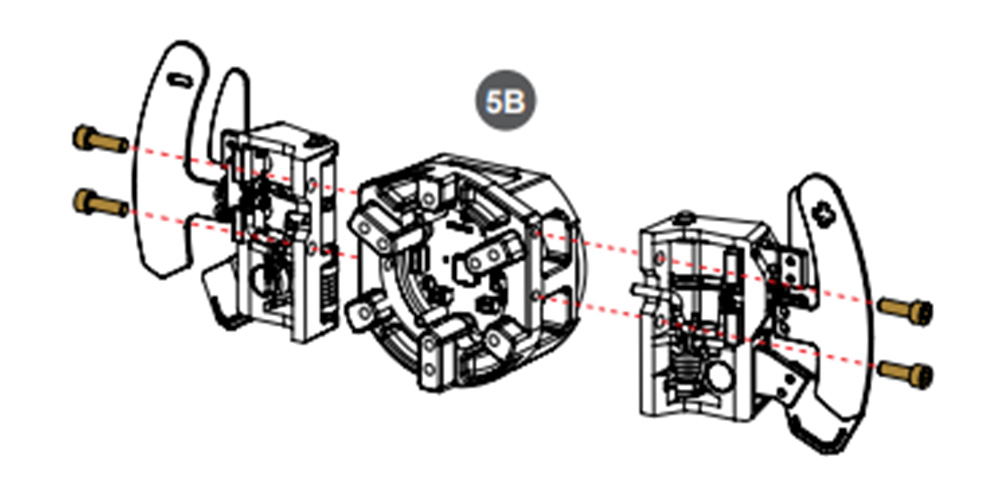

Now the paddles are installed to the side of the hub using two screws each.
Mounting Podium Button Module Endurance Correct Fitting For Steering Wheels

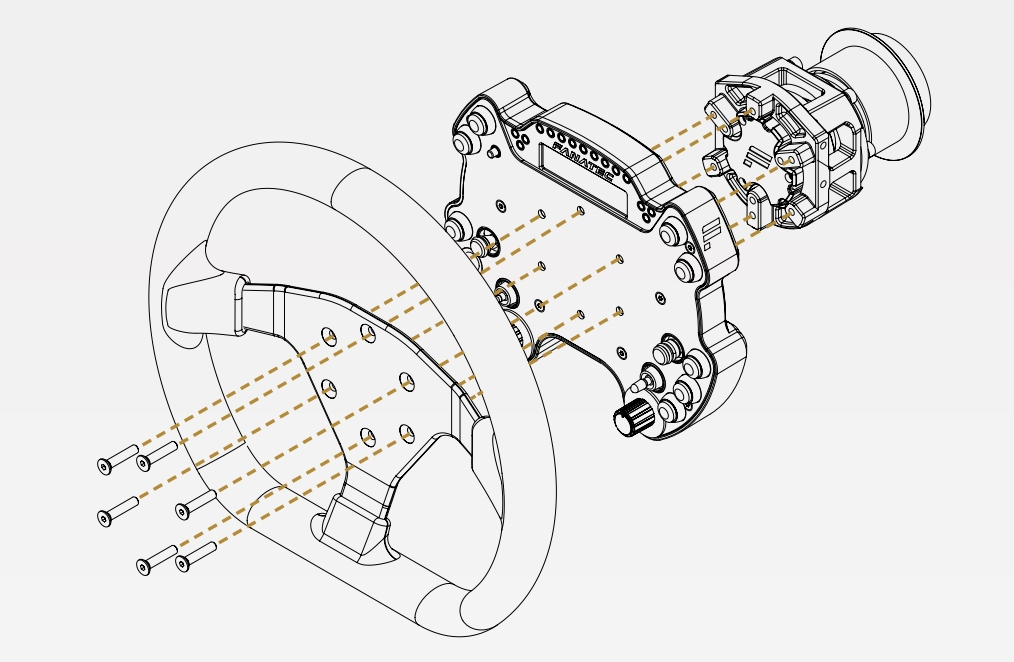

Mounting Podium Button Module Endurance

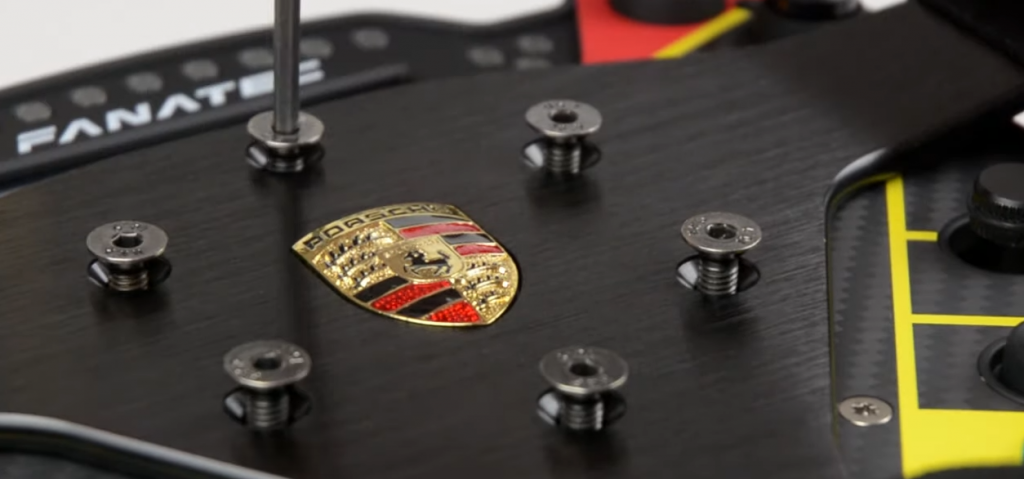

Now to mount the Podium Button Module Enduranc with the Podium Steering Wheel Porsche GT3 R Suede.

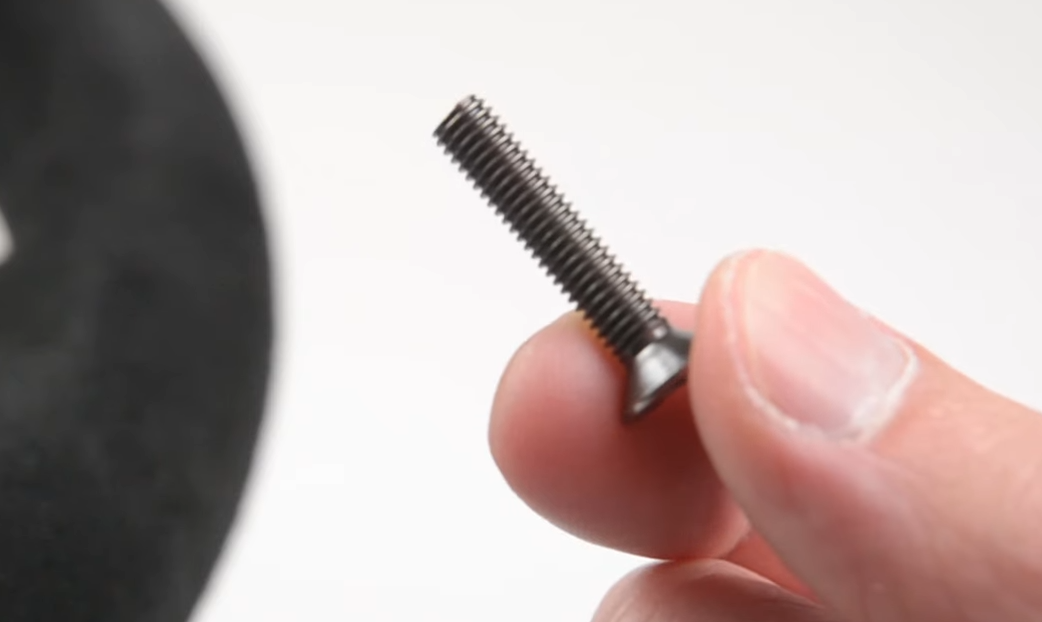

NOTE: The screws that come with wheel are too short and you must use the larger screws that come with the Podium Button Module Endurance.
QR1 Wheel Side Club Sport Quick Release Adapter Fitting

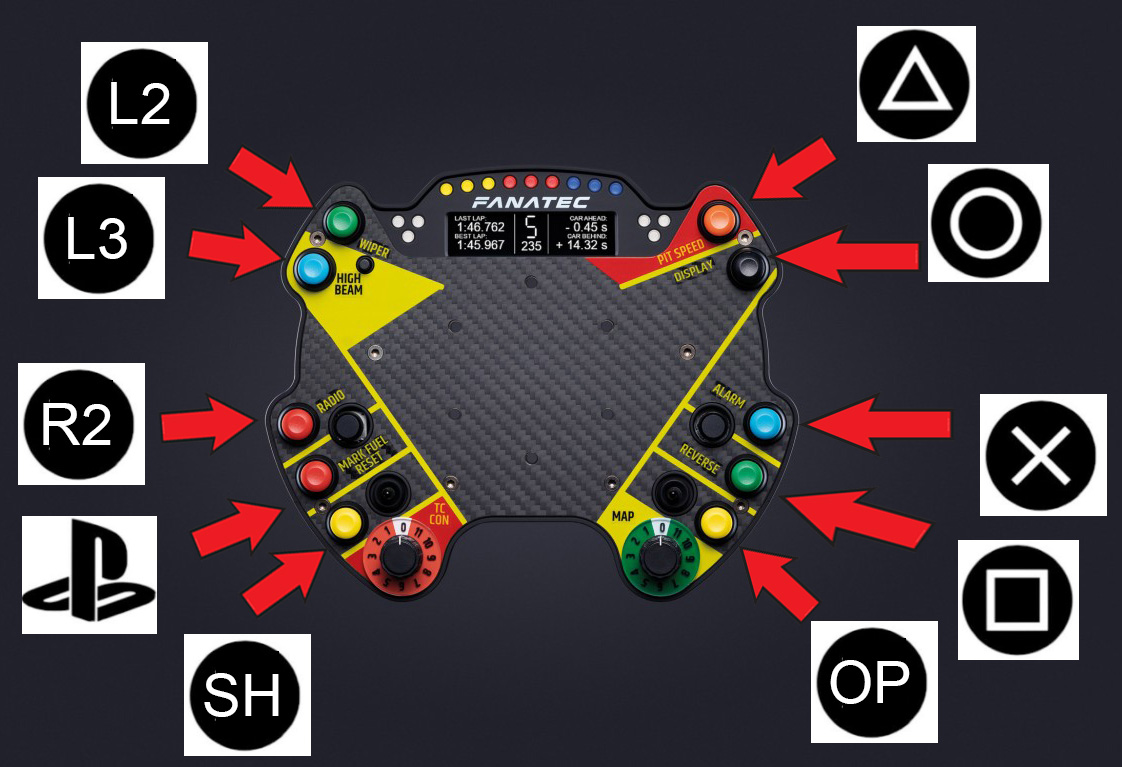

Mounting Podium Button Module Endurance Default PS4 PS5 Button Configuration
